167632
Vision 2008 4F44-DIN 56500-163-4F44

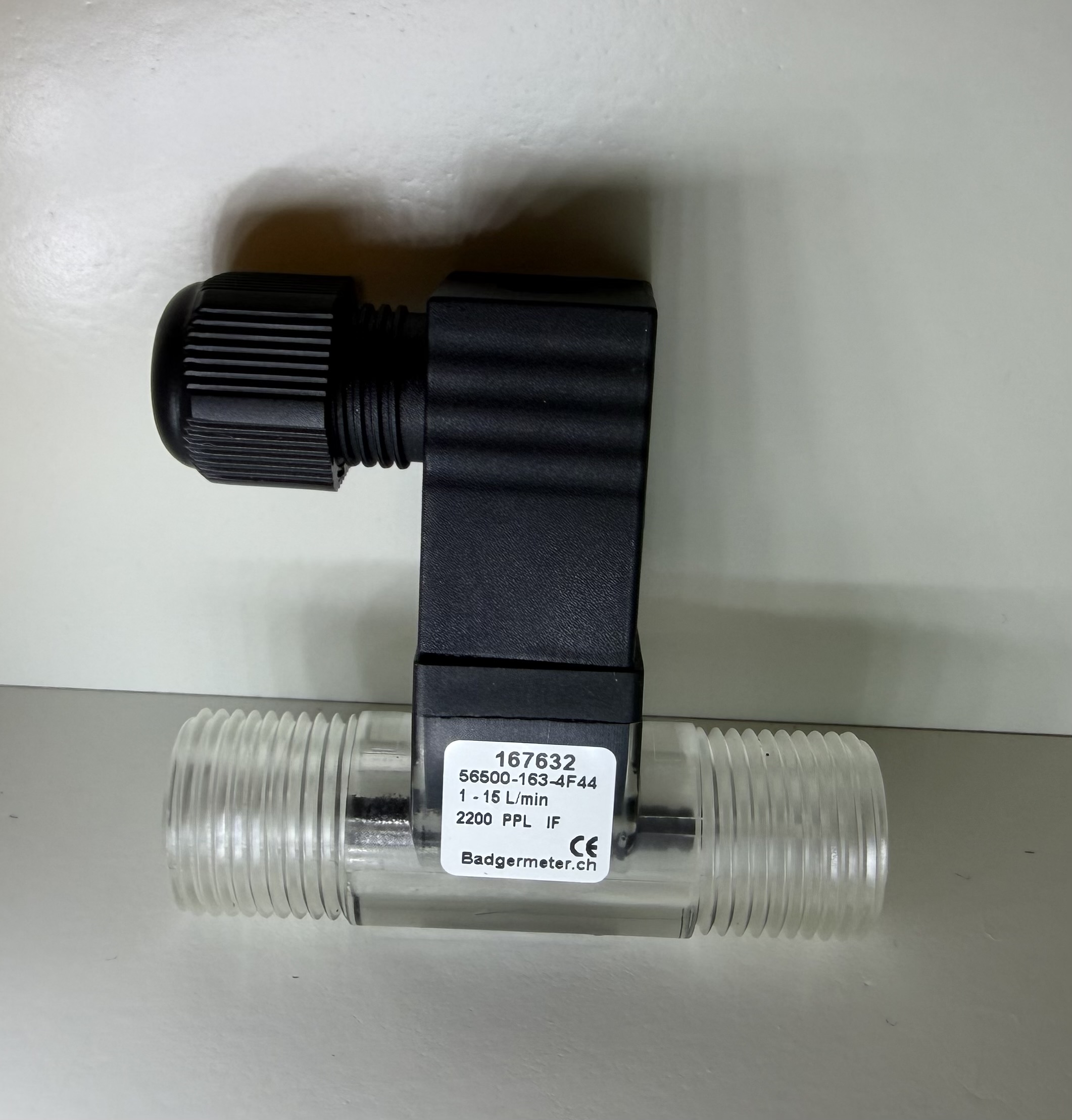

Turbinemeter type Vision 2008 4F44 with plug
Materials and technical data:
Housing : Trogamid
Rotor : PA12 Ferrite
Bearing : PTFE / Graphite
Flowrange : 1 - 15 l/min
Accuracy : +/- 3 % of value
Pulsesensor : Hallgenerator
p-max : 25 bar
t-max : 100 °C
Connections : Threads G 3/8"
El. connection : 3 flat connectors (2,8 x
0,5) and
metermounted plug (connector) MICRO-EN
60529
Laylength : 55 mm
Mounting : In each position
K-Factor : approx. 2200 pulses/lite
Power Supply : 5-24 VDC
Customs registration no.: 9026 10 81
Country of origin : İsviçre
