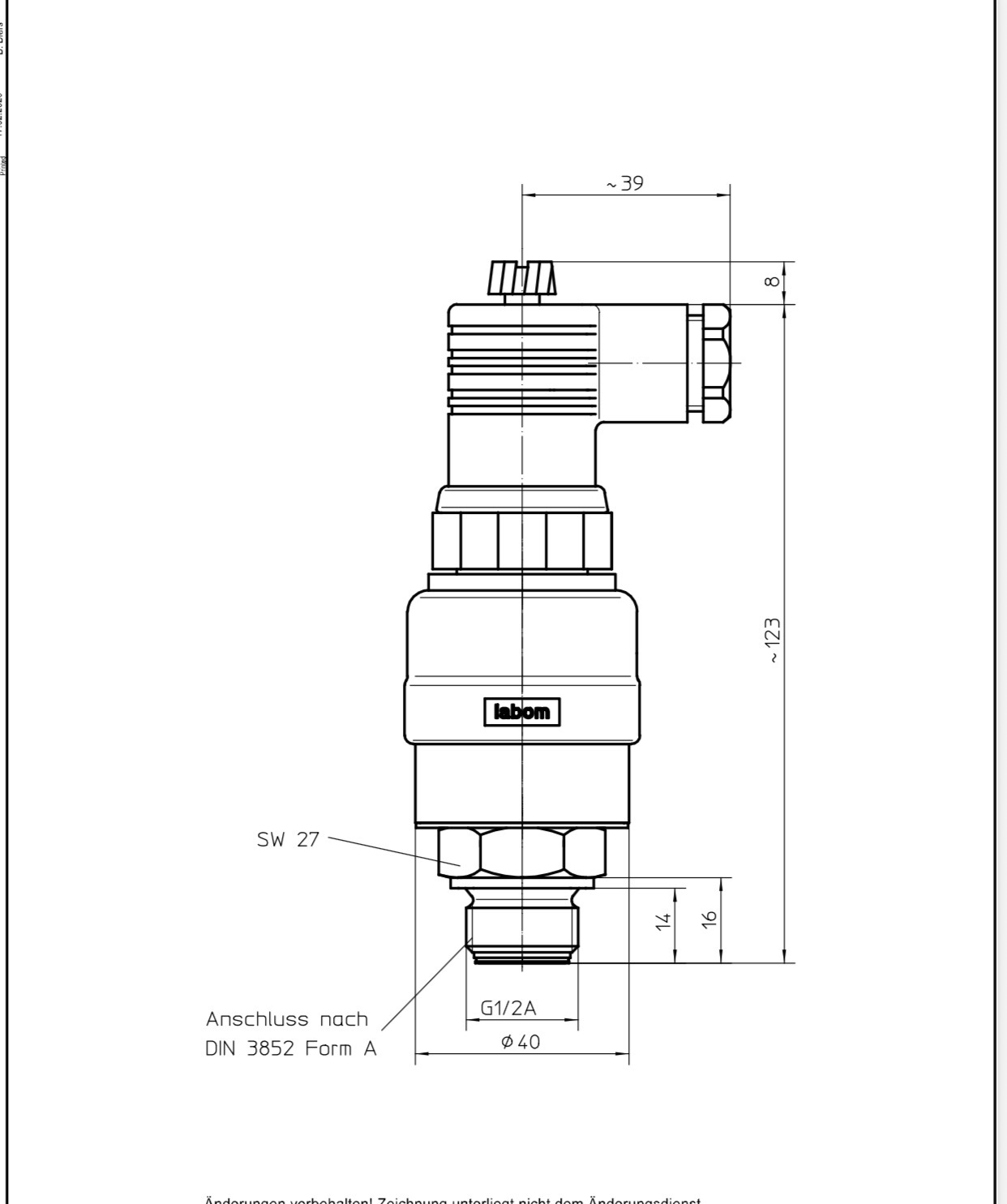

Order Code: CE1011-A1060-H1-S68-W4999 PRESSURE TRANSMITTER UNIVERSAL for general applications with flush mounted diaphragm acc. to data sheet D4-025 design: standard housing measuring principle: piezoresistive explosion protection: type of ex-protection as follows measurement: gauge pressure, process connection G 1/2 B with o-ring relative range: 0...25 bar output signal: 4...20 mA, 2-wire circuit type of ex-protection: II 2G Ex ia IIC T5/T6 Gb, standard W4999 = ADDITIONAL DESIGN: see below Custom-Tariff-No.: 90262020 W4999 design free of silicone (including connection cap) system filling: special screw-in thread: G 1/2A as per DIN 3852 as per special specification SB-EM/ED/008/99
