Order Code:CE6110-A1999-K1014-T110-H1-F2

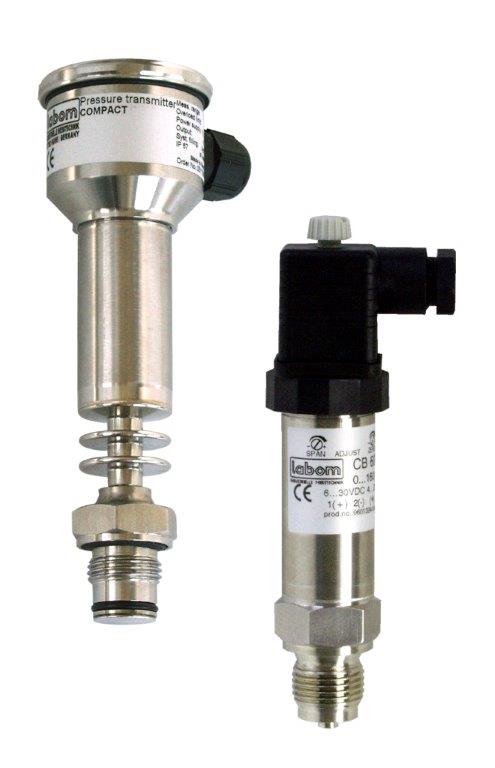

COMPACT PRESSURE TRANSMITTER with threaded connection
see data sheet D4-020-1
design: flush mounted diaphragm
Ex-protection: without
pressure sensor: piezoresistive for gauge pressure
measuring range: see below
Special measuring range: -0,5...+0,1 bar / overload limit 6 bar
process connection: threaded connection
nominal width: G1 B with O-ring and sealing washer
gasket material: NBR
electrical connection:
right angle plug acc. to DIN EN 175301-803-A (DIN 43650, model A)
IP 65, for cable ø 4...10 mm
output signal: 4...20 mA, 2-wire technology
calibration: position of process connection 03:00 or 09:00 o' clock
