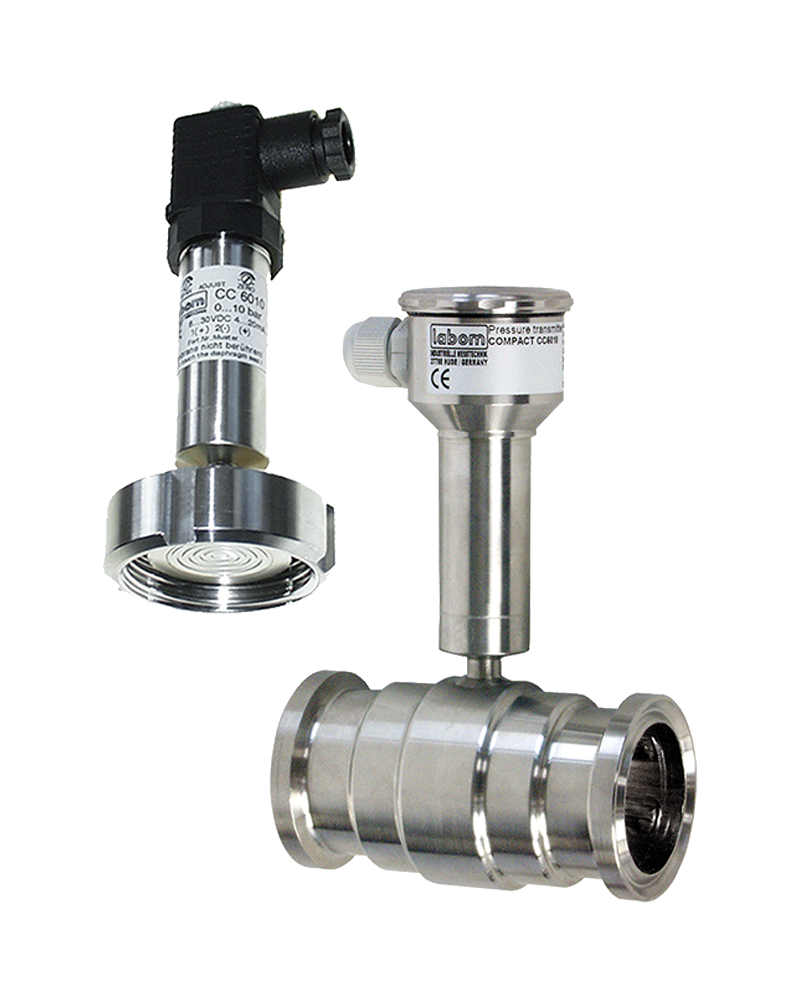

CC6020-A1093-H1-T110-W4999 DE1180-A4001-L23-T99-W4999

CC6 PRESSURE TRANSMITTER COMPACT for diaphragm seal operation
02 design: with temperature decoupler see data sheet D4-020-7
0 explosion protection: without
A1 pressure sensor piezoresistive for gauge pressure
093 measuring range -1...24 bar, overload limit 60 bar measuring accuracy:
linearity error incl. hysteresis < + 0.2 % f.s. accuracy of adjustment < +/- 0.2 % f.s.
H1 output signal: 4...20 mA, 2-wire technology
T110 electrical connection: right angle plug acc. to DIN EN 175301-803-A (DIN 43650, model A) IP 65, for cable ø 4...10 mm
W4999 ADDITIONAL DESIGN: see below
Design for process temperatures up to 205°C
DE DIAPHRAGM SEAL for general application, screw-in thread
see data sheet D5-032
118 per DIN 3852: G 1/2 A, PN 400
0 design: standard
A400 connection of meas. instrument directly welded
1 material wetted parts: stainless steel mat.-no. 1.4404/1.4435 (316L)
L23 system filling: Synthetic oil, free of silicon FD1
acc. to FDA 21 CFR 178.3570 / H1-registered
DMB_6803
T99 temperature range: see below
W4999 ADDITIONAL DESIGN: see below
Use in clamping sleeves

Serial number: 1500696/01/002
